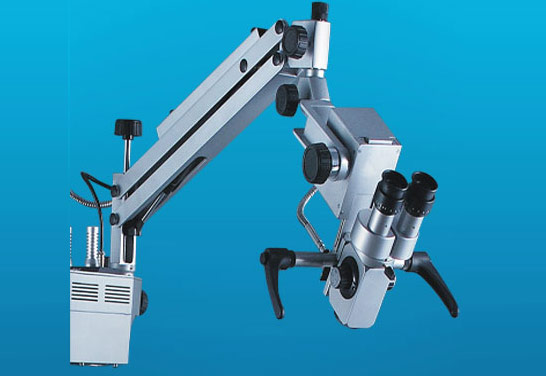

Surgical Microscope Cold Light IE-06 E
Details
Surgical Microscope Cold Light IE-06 E
| Specifications - Microscope Section | |||
|---|---|---|---|
| » | Binocular Tube | : | 90° ENT & General Surgery |
| » | Eyepieces | : | 12.5x/ 10x/ 16mm Dioptric Adjustment |
| » | Magnification Changes | : | Built In Manual 3-Step Changer |
| » | Total Magnification | : | 7.5x, 12.5x, 20x 1:3 |
| » | Field of View | : | 37.8mm, 23.5mm, 14.5mm |
| » | Objective Lens | : | F = 200, 250, 300, 400mm (For General Micro-Surgical Fields) |
| » | Working Distance | : | 200mm |
| » | Interpupillary Distance Adjustment | : | 55mm to 75mm |
| Illumination Unit | |||
|---|---|---|---|
| » | Type | : | By Optical Light Guide System |
| » | Light Source | : | 24V/250 Watts Halogen Lamp |
| » | Illumination Control | : | Continuous Adjustment |
| » | Field of illumination | : | 70mm |
| » | Filter | : | Cobalt Blue, Red Free, Heat Absorbing Filter |
| Stand Section | |||
|---|---|---|---|
| » | Type180 Vertical Range Of | » | Floor Stand |
| » | Counterbalanced Arm | » | 400 mm |
